Air Lab Console

Get to know Air Lab Console, our web-based interface, allowing you to access data and configure your Air Lab.

Connecting

1. Open Air Lab Console on a Chromium-based browser (Chrome, Edge, etc.).
2. Click Connect and pair your Air Lab with Studio.

After a few seconds of loading the device's data, your Air Lab's data will be available to view. To indicate the connection, the Bluetooth icon t will appear in the top-left corner of the Air Lab status bar.

Task: Use Air Lab Console to give your Air Lab a personalized name.

Data Access

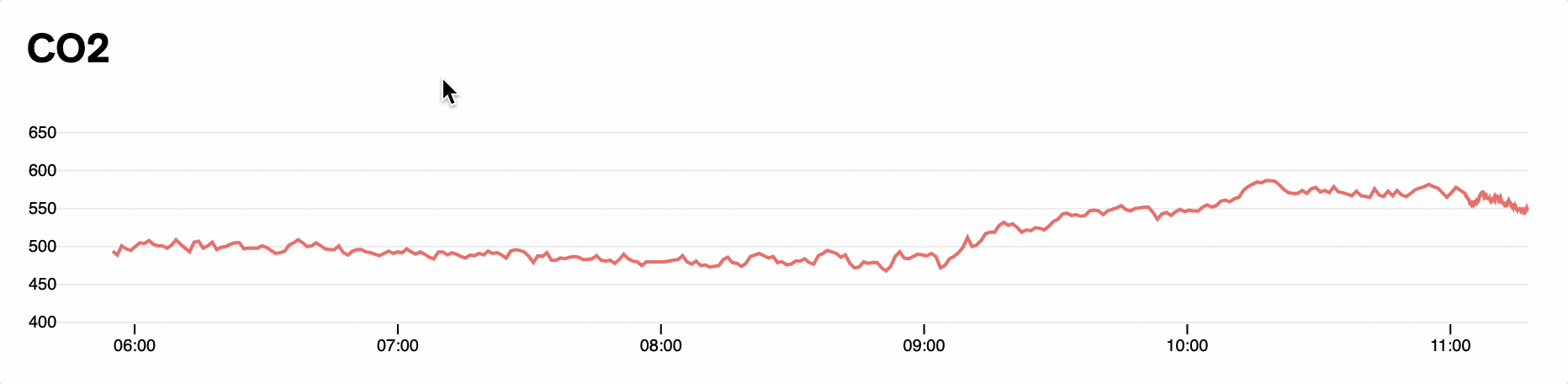

The Live Data page displays graphs of the data collected by your Air Lab on an ongoing basis. Hover over a graph with the mouse to read individual values.

This view is particularly useful for displaying all graphs simultaneously, making it easier to spot correlations between air parameters and to see how specific events, such as opening a window, affect the environment across all graphs.

Similarly, you can analyze past measurements stored on the device in the Measurements program.

Idle Screen

Note: This feature requires firmware v0.10.0 or later. If your device is running an older version, update it first via Firmware Update.

The Idle Screen section lets you manage the screens shown on your Air Lab's display when it's not actively used. You can add screens from a curated gallery, reorder them, configure their appearance, and enable automatic cycling.

Adding Screens

1. Navigate to the Idle Screen section in Air Lab Console.
2. Click Add Screen to open the install page.
3. Browse the available screens in the Gallery and click Add Screen next to the one you'd like to install. The plugin will be downloaded and installed on your device automatically.

The same screen can be added multiple times with different configurations. You can also add screens from manually installed plugins. These will appear in the Custom section at the top of the install page.

Configuring Screens

Each screen can be individually configured. Click the Configure button next to a screen to open its settings. The available options depend on the screen plugin and may include toggles, sliders, dropdowns, and text fields. Click Save to apply your changes or Remove to delete the screen.

To reorder screens, drag them into the desired position in the list. Click a screen to set it as the currently active one.

Auto Cycle

Click the Settings button at the top of the Idle Screen section to access global settings. Enable Auto Cycle to have your Air Lab automatically rotate through all configured screens while idle.

Settings

Under the settings page, you can give your Air Lab a personalized name, switch the interface language, and change the sampling rate of the measurements. Toggling the Developer Mode at the bottom of the page will make a new Debug page appear in the sidebar. This will also add the Developer d program to your Air Lab.

Tip: To learn more, see Developer Mode.

Debugging

The Debug page lets you review device metrics, stored files, and capture your Air Lab's screen. To record the screen, follow these steps:

1. Head to the bottom of the Debug page.
2. Under Tools, select Record (.png).
3. Once clicked, it will start capturing your Air Lab's screen.
4. To end the recording, click Stop in the pop-up window.

With each change in the screen (for example, value change, minute passed, or clicking through the programs) it will export one frame.
